BAG AND SENSOR FEATURES

Single-use Bioreactor Bag

SINGLE USE BAGS

Main features

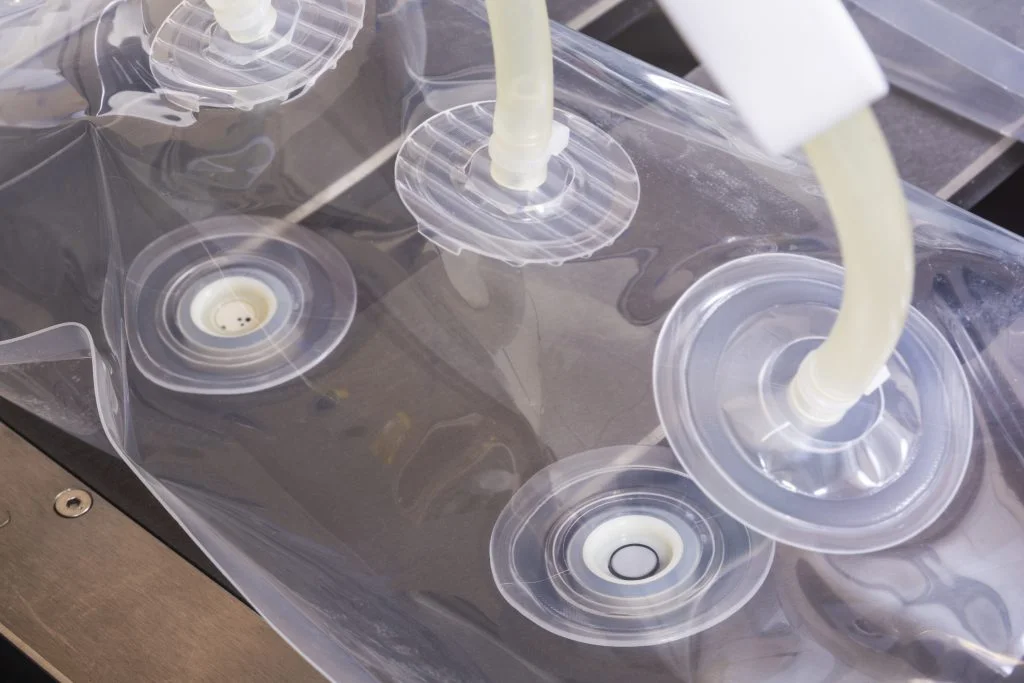

  • Disposable pH sensor (bottom mounted)
  • Disposable DO sensor (bottom mounted)
  • USP VI film material
  • Animal component free
  • Pre-sterilized
  • Sampling through sample septum
  • Drain with Luer lock
  • 3x addition tube with Luer lock
  • Gas inlet with filter
  • Gas outlet with filter

Microbial

  • Pillow shaped
  • High flow capsule filters
  • Dimensions: 550 x 740 mm

Cell Culture

  • Pillow shaped
  • Low flow disc filters
  • Dimensions: 550 x 660 mm

3D Box - shaped

  • Box shaped
  • High flow capsule filters
  • Dimensions: 520 x 650 x 130 mm
  • Available from 2L to 200L

SINGLE USE SENSORS

All bags are equipped with single-use sensors. Configurations include no sensors, a Dissolved Oxygen, a PH or both sensors.

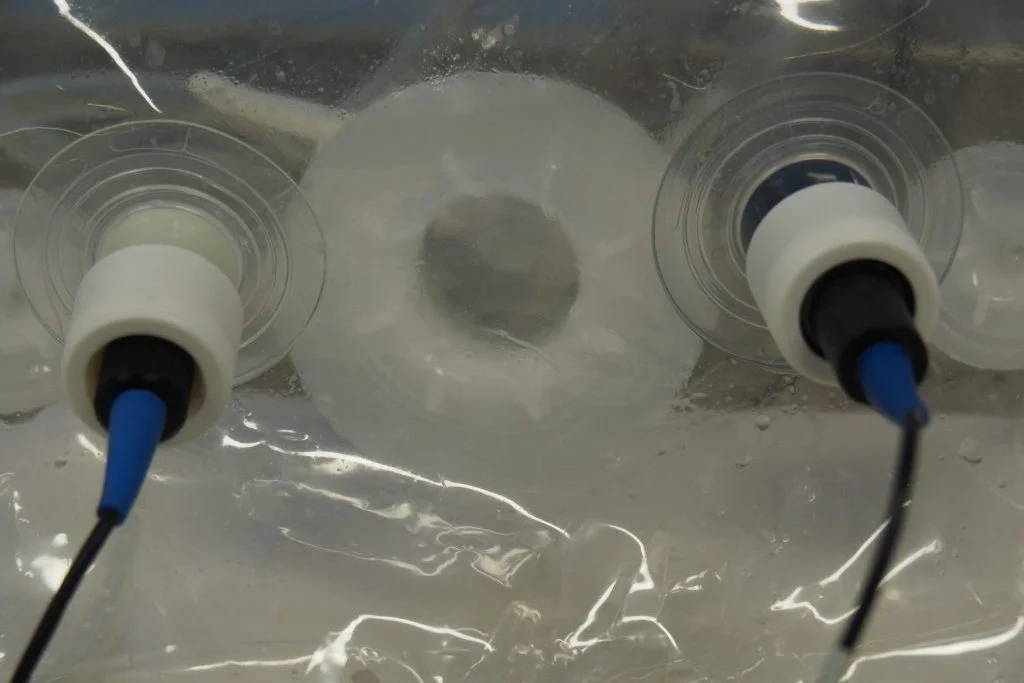

The sensors are bottom mounted, ensuring immersion even in low volume situations.

Sensors are calibrated using a one-point calibration.

Single-Use pH sensor

Our electro-chemical pH sensor is a long shelf-life (traditional) glass electrode with outstanding stability and low drift over long operating periods.

Single-use DO sensor

Our DO sensor is a polarographic electro-chemical sensor with a disposable membrane and a re-usable electrode. The membrane has a dual function as an oxygen selective membrane and a sterile barrier.

CUSTOM BAGS

Many of our customers have benefitted from customised bags that meet their process requirements.

With single-use technology comes flexibility. Contact us to find out how we can meet your process requirements.
